So, with no further ado...here is an example of the Eaton Rapids Joe Think Tank in the default condition:

Process Failure Mode Effects Analysis, Detection of Dispensed Materials:  Failure

Toothpaste is a "dispensed" material.  Any material that is removed from a bulk storage and pumped, sprayed, squeezed or brushed or oozed into position is considered a "dispensed" material.

In industrial processes, dispensed materials are usually adhesives, sealers, coatings and the like.

Important attributes involve presence, location and amount.

In the good old days, a technician would open a viewing port once an hour, eyeball the results and make a notation on a clipboard.  A trained technician was probably good for +/- 6mm (roughly 1/4") for automotive applications.

Technology marches on.  The preferred method is now to use digital cameras to snap a "shot" of the part + dispensed material and to count pixels and to do "math".   It is no great trick to have this method be good to  0.25mm (the thickness of three sheets of paper).

Two problems with the new technology present themselves.  One is that technicians are likely to use 0.25mm as the GO-NOGO even if history indicates that +/- 5mm is sufficiently precise.  The other issue is a problem of contrast.

Contrast

As a human, you might look at this simulation of a dispensed material on a steel coupon.  No problem...right?

But that is not what the digital camera sees.  It "sees" in Black-and-White.

Not nearly as much contrast now.
The problem is compounded because the adhesives with the most impressive mechanical properties, the ones used in the most critical applications, are rarely black (the default).  Typically they are blue (Example) or white or unpigmented.

That poses a problem to the PFMEA practitioner:  The most critical applications have the lowest ability to detect defective dispense.

Theoretically....
Theoretically, blue items should turn black when illuminated with orange light of 590 nm wavelength.  The inverse is not true.  Blue light has sufficient energy to kick "orange" electrons out of their lower energy state, and then those electrons will emit the lower energy orange light when they drop back into their lower orbit.  But, in theory, orange light does not have enough energy to do the opposite.

So the solution should be very simple, right.  Simply illuminate the blue dispensed material with orange light.

Hmmm!  That does not look very black.  In fact, it looks a little bit...BLUE.

Let's look at it the way the camera will see it.
What the heck!

In re-evaluation, it is possible that the "orange" light is not pure 590 nm light.  RGB monitors fool the human eye into "seeing" orange by mixing 100% red, 63% green and 0% blue.  The orange LED bulb used for these experiments may have used an RGB strategy and the green component may have "lit up" some of the blue pigment package.

Another possibility is that the material had large amounts of white pigment and small amounts of blue pigment.  The light may have simply bounced off the titanium dioxide particles.  These seems less likely because the color photo shows a distinct "bluish" cast.

So was this experiment a total loss?
No.

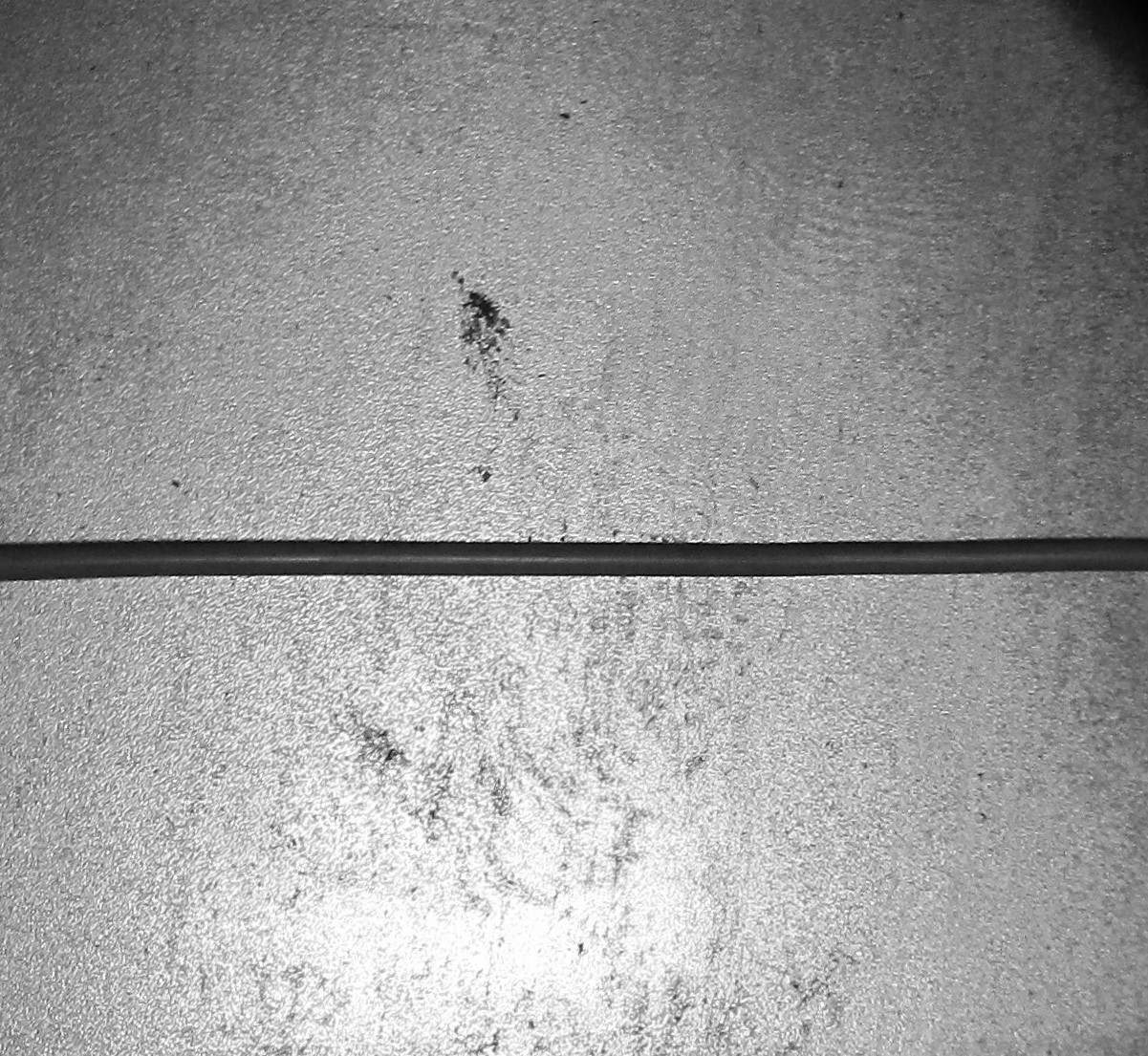

Here is another picture from the same series.
Quite by accident, this photo placed the light source so that it maximized the reflectivity of the metal test coupon and made the light blue bead dark by contrast.

Ironically, another effective strategy is to use a point light source that is oriented with the panel such that the bead throws a "shadow" with the camera positioned to best see that shadow.
