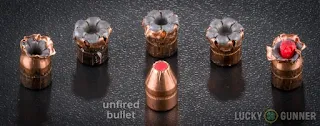

Images from Lucky Gunner.

The FBI protocol for testing the terminal ballistics of a bullet has one component where a 10% gelatin block that simulates flesh is draped with four layers of denim and then the bullets are fired into the block.

The denim defeats the bullet in two ways. As seen from the .38 Special bullet that was fired from a "snubby", the denim can brinell or emboss the soft lead of the mouth of the hollowpoint. The denim bridges across the opening and prevents it from dilating.

The second way that denim defeats hollowpoint bullets is that the cavity can pack with fiber. A column of fiber can be placed in compression and will exhibit very little bulging.

Run a little mental exercise with me. Visualize a deck of playing cards in a vice. Spin the handle. Almost nothing happens to the physical dimensions of the deck of playing cards. Now, put a large, rubber eraser into the vice and spin the handle. In your mind's eye, can you see the eraser bulging. The same phenomena happens in reverse when we pull on a rubber band. The band gets longer and the band gets thinner.

If the cavity is filled with water or gel or flesh, then the outward forces on the cavity "tip" the expansion. Fiber, not so much.

Bullet engineers determined that if they pre-fill the cavity with a rubber plug then the cavity cannot fill with fiber. That negates one of the problems with denim covered targets.

The issue is that when bullet makers are selling every projectile they can ship, why should they invest the extra labor, expense and increased scrap-rate that the more complicated elastomer-tipped projectile forces?

---This material is provided solely for entertainment purposes---

Suppose it were possible to retrofit regular, hollow-point bullets with rubber plugs? Then, we could buy excellent and economical bullets from a company like Rocky Mountain Reloading and "upgrade" them to perform more robustly when they encounter cloth barriers.

Is it possible?

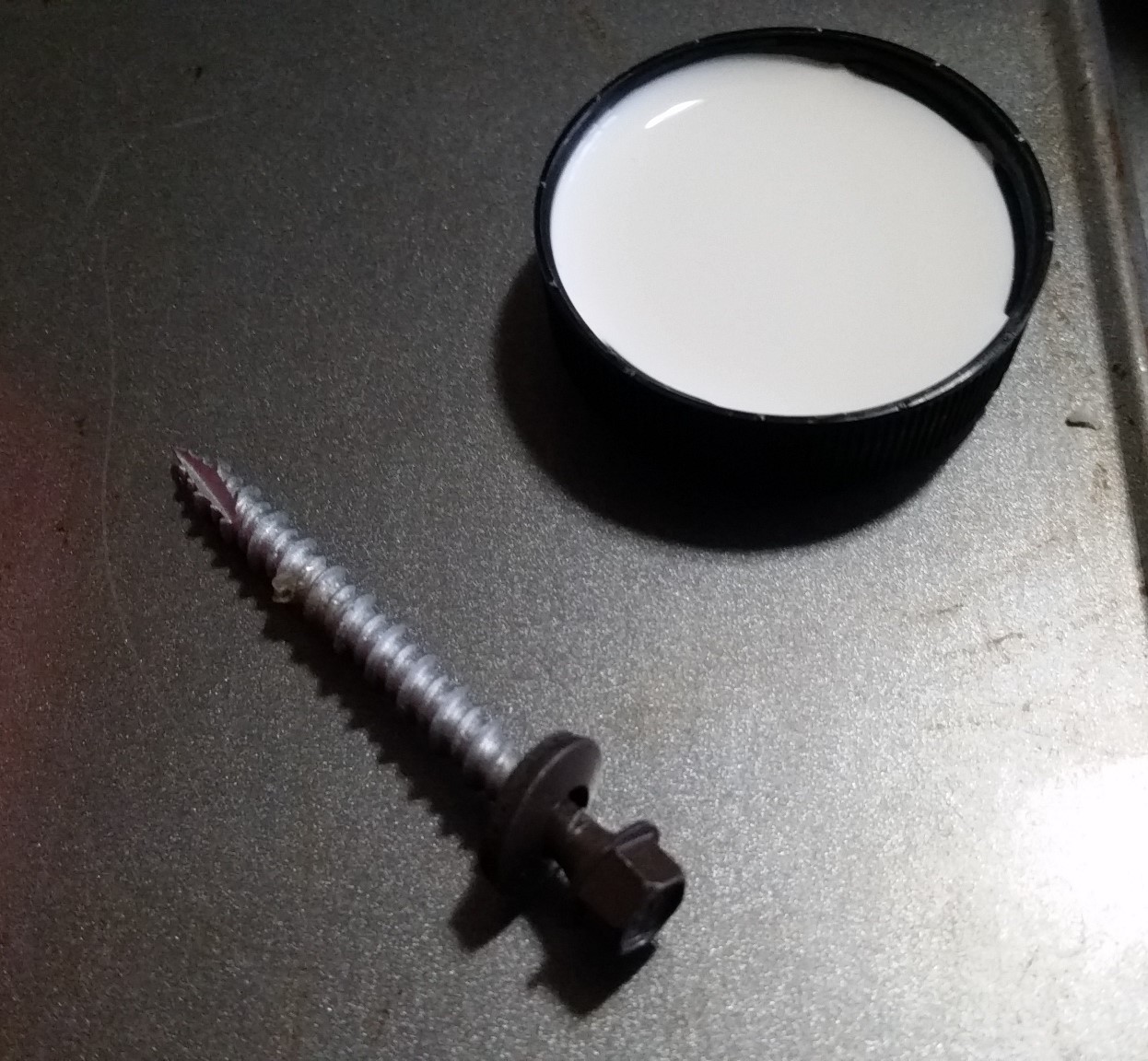

I started with a hypodermic needle and a syringe but the syringe plunger was sticky and it was a pain to use. Very slow. Then, I tried a screw used to attach sheet-metal to pole barns and it worked like a dream. The threads grabbed just enough latex and the groove in the tip smoothly fed it to the cavity. With little practice I was knocking out about one bullet a second.

It would not be a big deal to make a multi-screw tool that located to holes with pins. It should work like a champ as long as the fresh bullets were positively positioned and located before the gang-tool was applied.

One of my nibblings is a thesbian and she is very smart about make-up. This runs about $12 a pint and if you would have enough material to fill 36,000 2mm dia by 4mm deep holes if you had no waste.

After filling

Latex exhibits about 20% shrinkage as the water evaporates. Bullets for semi-auto pistols should have the plug counter-sunk so it does not hit the ramp on feeding.

Lead hollow-points for revolvers should have the plug "proud" so the denim hits hardened latex rather than lead that it can emboss into. The latex is soft and stretch, sort of a tear-away jersey concept. It will be necessary to make two applications of latex to achieve the "proud" configuration.

---This material was provided solely for entertainment purposes---
