Setback and KABOOMS!


Out of curiosity, I loaded 124 grain, Rocky Mountain Reloading hollow-points into two un-primed 9mm Luger cases. I fiddled with the C.O.A.L. (Cartridge Over All Length) until it seem to chamber reliably. That O.A.L. was 1.11 inches.

I zeroed the scale with the loaded/empty/unprimed round on it. I inserted a 14 gauge needle and syringed in water until I saw water in the primer pocket. I did not take heroic steps to eliminate the bubble that may have been trapped at the base of the round. Then I reweighed the water-filled round.

The difference in weight for each example was 0.47 grams which suggests a powder volume of 0.47 cubic centimeters.

A little bit of math suggests that the swept-volume of the base of the 9mm bullet is 0.636 cc for every centimeter of travel.

Converting to inches and percentages: starting with that bullet at 1.11" C.O.A.L. then every 0.010 inches change in C.O.A.L. changes powder volume by 3.8%

Less powder volume means significantly more pressure for a given amount of powder.

For the purposes of visualization, four sheets of ordinary "copy" paper adds up to about 0.010"

In a similar way, a LONGER bullet (projectile) reduces powder volume by the same percentage versus a shorter bullet with the same C.O.A.L.

If you look at some loading manuals, you will see C.O.A.Ls. for 9mm Luger loaded with various 124gr and 125gr bullets that range from 1.060" to 1.169".

Assuming the same length bullet (projectile), a 1.060" C.O.A.L. offers 17% less volume than the 1.110" C.O.A.L. while the 1.169" C.O.A.L. (The S.A.A.M.I. maximum) offers 20% more volume.

All other things being equal, loading longer C.O.A.L. offers some breathing room in the event of bullet setback, shooting ammo that is thermally "hot" (perhaps the case was sitting in the sun), if supply constraints force you to use a primer with more brisance or should you encounter a slightly faster burning lot of a cannister powder.

"All other things being equal..." means that your bullet is the correct size for the firearm (don't laugh) and the bullet is not already engaging the rifling in the barrel, that is, the bullet has some amount of free-travel before it encounters the resistance of being engraved by the rifling.

As with all things on the internet, this if offered for entertainment purposes. Pack your own parachute. Collect your own data. Do your own math. It is your own fingers and eyeballs that are at risk.

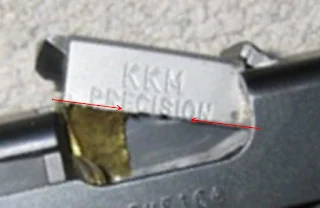

The failure followed the bottom of the "E", "C", "S" and "O" in the manufacturer's stamp. Unfortunately, those features aligned with the thinnest part of the barrel around the chamber.

Aside: This combination of overloading and a less-than-optimal location for a manufacturing stamp is not unique.

Back when I was a wee-sprout in engineering school, I remember seeing a textbook showing an airplane propeller that experienced the same failure. All of the testing was done with an un-stamped propeller. It sailed through the testing with no failures. It went into production WITH the stamp and a plane lost a blade while in-flight.

I have no knowledge about this particular product (the barrel). They might have tested it with the manufacture's stamp.

I included the photo to show that casual disregard for details like C.O.A.L. put you at the mercy of variations in heat-treat and steel chemistry, exposure to hydrogen, location of stamp marks and even how "sharp" (or the age of) the actual stamps used on your barrel.

This KABOOM! might have never happened if the bottoms of the stamp-marks were more rounded (i.e. older stamps). It is unwise to place yourself in a position where microscopic details like the geometry at the bottom of a stamp-mark might decide whether you go home with all of your fingers.
