One of my skill-sets is "Throughput Improvement". One of the quick-tools I used when improving through-put was to look for where in-process inventory was stacked up. You knew you were getting close to a bottleneck when you had a buffer (or bank) that was always full. There had to be a choke-point somewhere downstream of that traffic pile-up.
One reason I am pretty focused on making sturdy storage boxes is because we have dozens-and-dozens of lids for plastic tubs...and very few tubs to put them on. That tells me that the tubs are the weak-link.

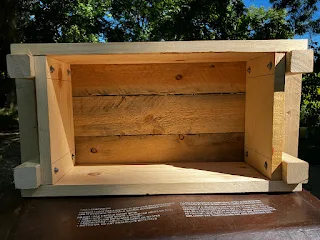

Let me introduce the ERJ Mark 2-S storage box.
This is my second try. "S" stands for short. There will be a "T" version in the future.
 |
| Interior dimensions are 15.5" long, 9.0" wide and 5.5" tall. The "T" version will have an interior height of 11". Distance center-line of handle to center-line of handle is 21.5" |
 |
| The 10.5" exterior width was chosen because the stringers on a standard pallet are 3.5" wide and 3 X 3.5" = 10.5". It is pretty easy to cut 17" long pieces from a 40" by 48" pallet. |
 e |
| The bottoms of the handles are 1.5" above the resting surface.... |
 |
| ...and 1.5" from the end panel of the box. Radii are routered into the two-by-twos to be finger-friendly. I wanted enough room to be able to pick them up while wearing winter gloves. The "T" version will have the same handle location because I dislike bumping into sharp corners with my thighs when carrying boxes. |
My long-term plan is to add some "skiis" to the bottom to keep them from bowing and to add a top with hinges and hasp.
 |
| The corner reinforcements are 2-by-2s and project 0.65" above the top-and-bottoms of the 1-by-6 sides. The intention is to protect the top and bottom panels (pallet stringers) from corner impacts. |
I used pole-barn siding screws because somebody (Kubota) borrowed my impact driver and T25 bits and hadn't brought them back. The siding screws does make the box more photogenic in the sense that you can see how it goes together.
Commodity 2X2s are about $0.30 a foot. #2 1"X6" are about $1.20 a foot. The box uses just shy of 5' of 1X6s and just shy of 4' of 2x2s. That pencils out to a skoosh over $7.20 in lumber costs for the "S" version boxes.
Minor improvements include using 1/4 X 1-1/4" long crown staples to position the bottom slats with short screws at ends for structural integrity. That should really speed up the process...as will having my impact driver.
From a volume standpoint, the "S" version has a bit more than three gallons of capacity and the "T" version will have an internal volume of about 6.5 gallons.
The box without a cover weighs 9 pounds and most adults should be able to carry 40 pounds (gross) given the better-than-average ergonomics.
